TECHNICAL DESCRIPTION

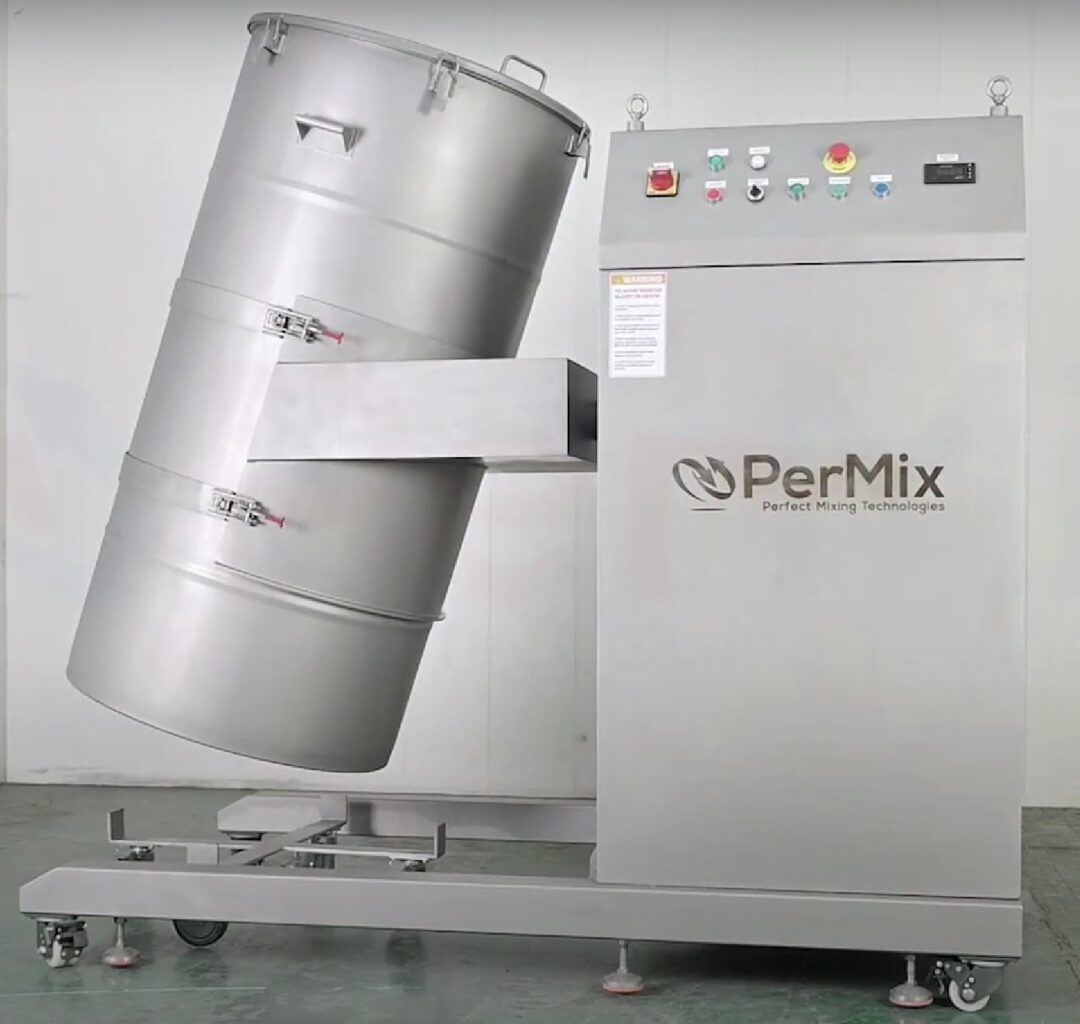

Tilting drum mixer, PDRS-400
Construction:
- Drum holder with clamps to hold the drum
- Motor-driven tilting device to tilt the drum holder for loading and mixing in different positions
- Direct drive unit (engine and gear) for 3D rotation of the drum holder and drum
- Machine base to support the mixer, with wheels and leveling feet
- Drum tray with wheels for transporting the drum
- Protective case NOT included
Machine capacity:
- One (1x) drum included, total capacity 650 l, working capacity 350 l (for BD~0.45 kg/l),
max load 155 kg
- Operating temperature (in drum): Room temperature
- Working pressure (in the drum): ATM
Drive unit:
- Voltage/frequency: 400V, 3-phase, 50Hz
- Engine power: 2.2 kW
- Engine explosion protection level: no EX
- Engine
- Gearbox from a reliable supplier
Speed regulation:
- Rim speed: ~14 rpm @ 50 Hz
- Single speed operation or variable speed control with optional frequency converter
Construction materials:
- Drum: stainless steel AISI 304
- Non-contact parts: SS304
Welding and surface treatment:
- Weld processing of non-contact parts: Welds must remain "as laid"
- Polishing of non-contact parts: Shot-blasted stainless steel parts
- Parts purchased (engine/gearbox/bearing etc.) as per manufacturer's standard (unless specified)
Machine dimensions and weight:
- L x W x H: ~2050x1200x1700 mm; Weight: ~450 kg
Electrical cabinet and control panel
- Electrical control panel integrated with the machine base
- Mixer ON/OFF buttons
- JOG button to move the mixer to a position that allows easy unloading of the drum
- Manual/Automatic switch with TIMER to set the mixing time and stop the machine in "Auto" mode
- Inverter
- Safety switches for connection to the control cabinet
- Main electrical parts (main switch, circuit breaker, AC contactors, relays, pushbuttons, etc.) from Schneider or equivalent; other auxiliary parts from reliable suppliers
